Integrated Piping System

The Future of Multi-Heating and Cooling

It’s time to say goodbye to traditional seven-pipe systems. Williams’ next-generation two-pipe system is powered by a building’s domestic water supply, providing lower installation costs and higher operational savings—all while eliminating the need for dedicated comfort system piping.

Our two-pipe system is whisper-quiet, reliable, and LEED-friendly to provide the ultimate comfort. Take advantage of your building’s existing piping infrastructure to provide on-demand, 24/7 heating and cooling.

Phased Openings

Open sections of a building sooner without waiting for time-consuming pipe installation. Our proprietary fan-coil technology utilizes the existing potable water system in a building to provide efficient heating and cooling.

Complete Projects Faster

Our IPS is an auto-calibrated, self-balancing system that can shave weeks off your project time. Complete your project with fewer materials, eliminate the need for noisy compressors, and maximize comfort with fan coils NSF-rated for potable water.

Lower Project Costs

Enjoy significantly lower building costs by reducing the number of pipes needed in a building from seven to just two. For a tailored solution, use the Williams suite of design software to select and design an efficient, cost-saving piping system.

Typical Fan Coil / Plumbing Fixture Piping Diagram

The Recommendations are:

Piping material for IPS ONDemand mains and runout piping to fan coils should be Copper, Stainless Steel or Polypropylene.
Piping material for plumbing fixtures should be Copper, Stainless Steel, Polypropylene or PEX.

What powers it?

Our proprietary fan-coil technology utilizes the potable water supply already existing in the building.

Explore Savings With Williams

Williams’ two-pipe system offers a cost-effective, scalable solution for domestic heating and cooling applications. Compared to traditional seven-pipe systems, our cutting-edge offers wide-ranging savings, including:

15% less to operate and maintain
20% reduction in labor costs
30% less to build
5x less refrigerant needed
60% less piping

A Better Solution

Costs up to 15% to operate & maintain. Quiet and comfortable heating and cooling with lowest installation cost and highest operational savings!

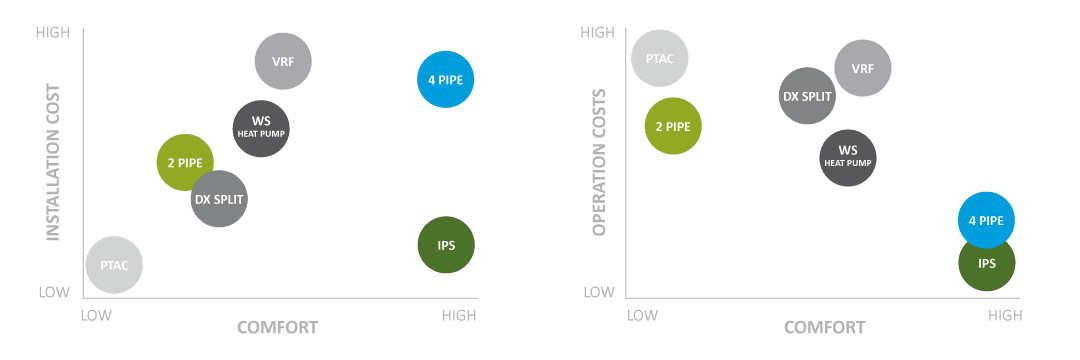

Installation cost vs comfort chart and operations costs vs comfort

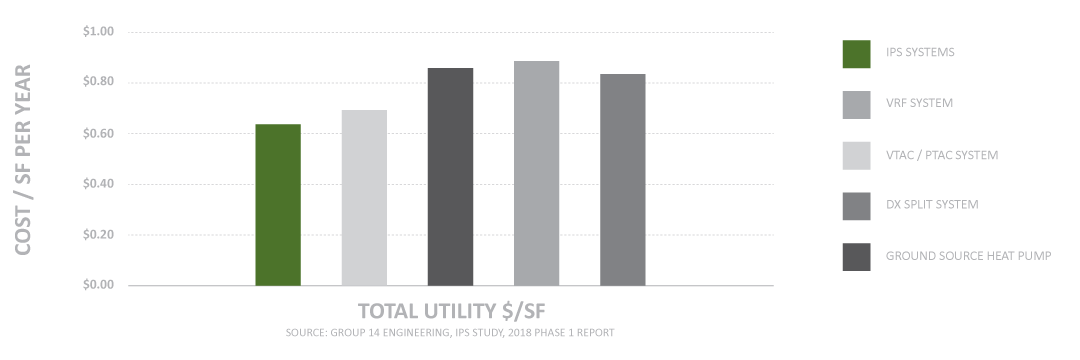

Utility cost per year chart

Resources

Hydronic Resources

Case Studies

Additional Documents

Accessories

Maximize Savings and Efficiency

TRACvalve™

Valuable performance value at a fixed cost!

The TRACvalve™ variable fan coil is a budget-friendly, cost-efficient solution to increase comfort through air temperature control. With TRACvalve™, the system’s central pumps use less horsepower to provide heating and cooling. In addition, TRACvalve™ improves central plant efficiency by moderating and lowering the overall energy demand.

TRACvalve™ adjusts to the design LAT, maintaining a high Delta-T across the coil. Variable fluid flow reacts to room and system changes, reducing the GPM at a load mode demand. Overall, TRACvalve™ variable fan coils offer an efficient solution for any indoor environment in which tracking and adjusting to real-time variable load is critical.

The TRACvalve Advantage	With TRACvalve, you get:
Test ports	Reduced flow of up to 80%
Ball valves	Improved chiller efficiency
ON/OFF two-way valve, 50 PSI close	TRACvalve™, 130 PSI close
Strainer with blow down	Rangeability 300:1
Cleanable, flow-limiting valve	Pressure independence
	Self-balancing

ComforTRAC™

A totally variable fan coil

The ComforTRAC™ from Williams has the ability to recognize changing room conditions and adjust automatically, matching real time variable load in virtually any indoor environment for the ultimate in comfort conditioning. Since moving BTUs in water is a superior method than moving them in air, the result is a higher level of comfort with lower system costs and greater energy efficiency. The ComforTRAC™ totally variable fan coil is the demand-controlled fan coil, offering variable CFM, GPM, LAT and dehumidification. Ideal applications include classrooms, conference and meeting rooms, dorms, suites, common areas or any space where discriminating occupant demand for comfort is required.

Design Features

Performance is demand-controlled and matches heating and cooling load in any climate.
Energy consumption is also demand-controlled as the load is continuously monitored and matched as needed. This allows the ComforTRAC™ unit to “sip” capacity from the main chiller system or boiler far more efficiently than conventional systems.
Open protocol-compatible, may easily be incorporated into building automation systems (BAS). BTL certified BACNet.
Coil design minimizes flow requirements and increases design Delta-T which reduces pipe size and the associated sizing of mains and central system components.
Leaving air temperature control (LAT) delivers comfort and quick response at the unit. The unit is continuously recomissioning itself to space and system variations.
Self-balancing and cleaning capabilities eliminate flow control devices, strainers and test ports saving capital and operating costs.

Features	Advantages
Digital controller – variable capacity based on set point difference to actual room temperature and humidity	System performance is demand-controlled – ComforTRAC™ matches the heating and cooling load in any climate.
Proportional two-way TRACvalve, characterized-port ball type with integral LAT sensor	Energy consumption is also demand-controlled – the variable load is continuously monitored and matched as needed. This allows the ComforTRAC™ unit to “sip” capacity from the chiller system or boiler far more efficiently than conventional systems.
Self-balancing	Open Protocol-compatible – ComforTRAC™ can easily be incorporated into building automation systems (BAS). BTL certified BACNet. Coil design minimizes flow requirements and increases design Delta T – this reduces pipe size and the associated sizing of mains and central system components.
Self-cleaning	Leaving air temperature control – LAT delivers comfort and quick response at the unit. The unit is continuously recommissioning itself to the real time space and system variations.
Maintains Delta-T	Self-balancing and self-cleaning capabilities eliminate flow control devices, strainers and test ports reducing both capital and operating expense.
Individual control of temperature and humidity
Less “ON-OFF cycling
Slow ramp rate and low RPM motor performance
NetSensor sets temperature, set point and humidity
